I relocated my battery!!! (Story of installation) **UPDATED WITH PICS**
After a year of thinking about it, I finally did it!
It took all day and went into the night. My buddy and I didn't have any circular saw blades to cut it, so we basically took a hammer and chisel and pounded the stock battery box away!
After doing this, we cut an 18"x22" .22 gauge steel sheet to size. After filling our bellies with mexican food and a trip to the hardware store for screws, epoxy, and silicone, we were ready to seal it. We had to cut and remeasure a few times, but it turned out really well.
The hardest part was dealing with the battery cables. I bought a Taylor battery box (part #48200) to seal my stock battery. I wanted to keep my stock battery for reliability purposes, but those cables wouldn't allow that. In order for the cables to reach it, I had to cut into the battery box, rendering the ability to keep the stock battery useless (since it leaks gas and poison).
Off to Auto Zone to get a new battery!
I opted for an Optima 35, which fit perfectly in the Taylor battery box.
We disconnected a few parts of the positive battery cable and planned and pondered on how to go about the situation. When we figured out a solution (one better shown in pictures), everything went smoothly. We even got the fuse box in the battery box! The trunk looks very clean and cable free! In fact, the only thing you see in the trunk is basically the battery box sticking out! I'm really happy the way it turned out.
Step 2: The Straight Exhaust!
It took all day and went into the night. My buddy and I didn't have any circular saw blades to cut it, so we basically took a hammer and chisel and pounded the stock battery box away!
After doing this, we cut an 18"x22" .22 gauge steel sheet to size. After filling our bellies with mexican food and a trip to the hardware store for screws, epoxy, and silicone, we were ready to seal it. We had to cut and remeasure a few times, but it turned out really well.
The hardest part was dealing with the battery cables. I bought a Taylor battery box (part #48200) to seal my stock battery. I wanted to keep my stock battery for reliability purposes, but those cables wouldn't allow that. In order for the cables to reach it, I had to cut into the battery box, rendering the ability to keep the stock battery useless (since it leaks gas and poison).
Off to Auto Zone to get a new battery!
I opted for an Optima 35, which fit perfectly in the Taylor battery box.
We disconnected a few parts of the positive battery cable and planned and pondered on how to go about the situation. When we figured out a solution (one better shown in pictures), everything went smoothly. We even got the fuse box in the battery box! The trunk looks very clean and cable free! In fact, the only thing you see in the trunk is basically the battery box sticking out! I'm really happy the way it turned out.
Step 2: The Straight Exhaust!
Last edited by csgirardeau; 02-03-2014 at 04:31 PM.
#2
This pic shows the process of how we "cut" the sunken box out. Basically hammered it out with a chisel.
Laying and measuring the stainless steel sheet

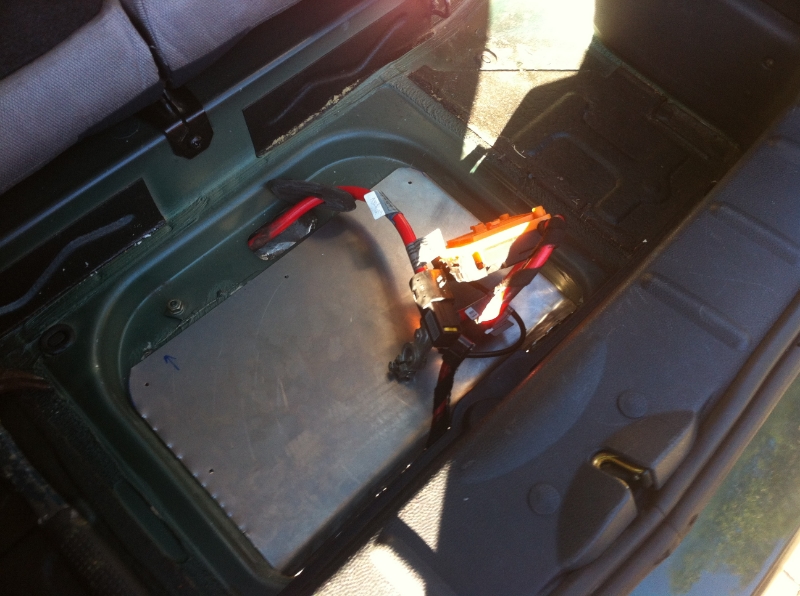

Here you can see the battery box as well as the small hole we cut to let the front cable go into the box. The box came in 3 pieces: 1 top, 1 body, 1 bottom. We had to cut a portion of the bottom as well as the body where it connected.

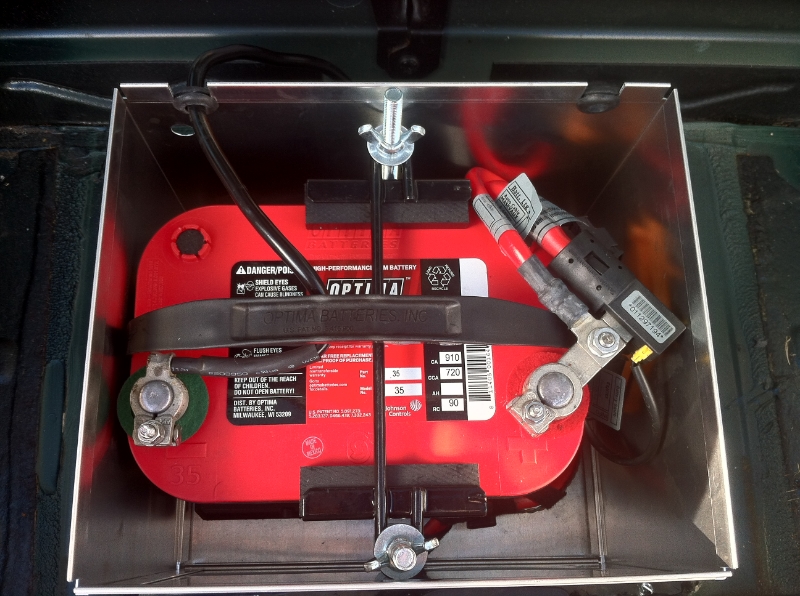

Everything coming together! Notice the absence of the negative battery cable. We had to desolder the battery clamp on the oem cable and re-solder it to a longer one.

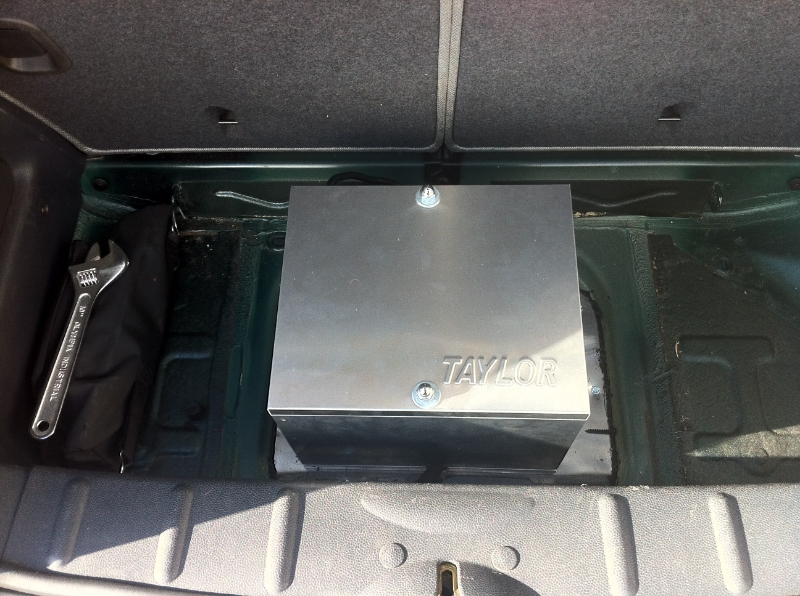

Nice and clean

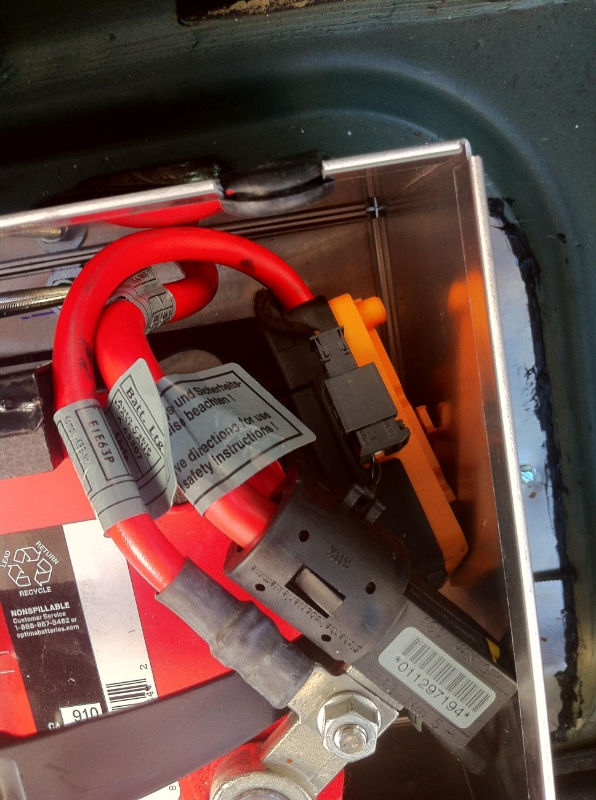

Close up of the fuse cable going into the battery box.
Close up of the battery cable going into the battery box
Close up of the bent portion of the stainless steel sheet. Why did we do this? We messed up and cut too much and had to compensate
Close up of the negative terminal. We used some shrink wrap to have a clean look.
Rerouted the fuse cable and bent the connector straight to line up
The fuse box sits snug in place. I'd make it straight, but the thick cables won't allow it!
#4
#5
Allows a straighter exhaust....
Looks ok...
Second the Grommet ASAP...would hate foir the car to burn..
I also suggest some undercoat spray on the bottom of the stainless part...reduce noise and reject some of the heat (a battery killer) from the new exhaust to come...
Choice of battery is interesting....
I do use an optima....
But the excess weight compared to the oem or even a light "sport battery" will likely MORE than negate the gain from the straight exhaust!
Looks ok...
Second the Grommet ASAP...would hate foir the car to burn..
I also suggest some undercoat spray on the bottom of the stainless part...reduce noise and reject some of the heat (a battery killer) from the new exhaust to come...
Choice of battery is interesting....
I do use an optima....
But the excess weight compared to the oem or even a light "sport battery" will likely MORE than negate the gain from the straight exhaust!
#6
Zippy, what kind of spray would I need? I also kept some shielding from the oem box to cover it when the straight exhaust is in place.
Also, I chose that battery because auto zone didn't have anything else. The battery barely weighed more than the stock one did so it's fine.
And I'm pretty sure that my car will lose weight when I change to a straight exhaust. I'll have less piping and 1 less muffler.
Also, I chose that battery because auto zone didn't have anything else. The battery barely weighed more than the stock one did so it's fine.
And I'm pretty sure that my car will lose weight when I change to a straight exhaust. I'll have less piping and 1 less muffler.
#7
Trending Topics
#8
2) I want a straight exhaust so relocating the battery is necessary. Most people use small and light racing batteries so it doesn't take up space in the trunk, however the battery is extremely unreliable for daily use. Since I don't use my trunk, I thought I'd just use a more reliable battery (I wasn't expecting to get an optima, but I needed a sealed one and I'll see how long it lasts).
3) I plan on adding diffusers to my bumper and a straight exhaust is needed for that.
My friends and I are into cars and love modding our cars for fun. It kills time and we make our cars sexier
#9
Zippy, what kind of spray would I need? I also kept some shielding from the oem box to cover it when the straight exhaust is in place.
Also, I chose that battery because auto zone didn't have anything else. The battery barely weighed more than the stock one did so it's fine.
And I'm pretty sure that my car will lose weight when I change to a straight exhaust. I'll have less piping and 1 less muffler.
Also, I chose that battery because auto zone didn't have anything else. The battery barely weighed more than the stock one did so it's fine.
And I'm pretty sure that my car will lose weight when I change to a straight exhaust. I'll have less piping and 1 less muffler.
A $5 can of rubberized undercoating will do fine if you fabricate up some heatshields when you install your exhaust.....
But if you want to keep the heat/sound out (or make it less boomy)there are some nice products around...I recall "lizard skin" as one of the better ones ...
One word of warning....many single exausts drone badly at some speeds....but sometimes a resonator upstream of the mufler can help....
Saw a nice diffuser paired with a 50% battery box deletion a few years ago when my car was custom tuner by RMW down in CT a few years ago....was from a couple of guys at a new company that was checking folks reaction to it....haven't heard of them again, but for my use/speeds it was overkill....like you I value reliability.... Every mod is about compromises....
I would make 100% sure you sealed the open metal with rust preventing primer....might still get some sprayed on there from below...stopping rust in a location like the trunk that sees lots of water should be high on your list.....and cutting off the box did open a wound that can start the downward spiral of rust as a cut compromises the factory rust protection in that area...
Have fun...but be SURE to check any possible chafe locations from moving the cables.... Grommet ANY edge, and keep stuff snug...arcing wires can cause big issues....
#10
Thanks for the info! We sealed the edges of the sheet in the trunk and outside with silicone, but the rubberized undercoating seems promising. I'll probably spray some rust primer and finish it off with the rubberized undercoating.
It actually rained the day after I did this and there were no signs of leaking, but I'll do it just as a precaution.
I'll grommet the holes down the same time I do the sealing, but so far, everything looks good. I forgot to mention that we hammered in the edges of where we cut and where the battery cables come in contact with said edges so it's pretty smooth, but again, I'm not taking any risks and grommeting those cables.
As for the resonator, I'm planning on getting magnaflow's longest one. If I have to I'll put two resonators plus the muffler. I also have resonated exhaust tips so it should finish it off nicely.
It actually rained the day after I did this and there were no signs of leaking, but I'll do it just as a precaution.
I'll grommet the holes down the same time I do the sealing, but so far, everything looks good. I forgot to mention that we hammered in the edges of where we cut and where the battery cables come in contact with said edges so it's pretty smooth, but again, I'm not taking any risks and grommeting those cables.
As for the resonator, I'm planning on getting magnaflow's longest one. If I have to I'll put two resonators plus the muffler. I also have resonated exhaust tips so it should finish it off nicely.
#13
Here's a link of the battery box:
http://www.taylorvertex.com/battery/boxes/
#16
Don't mind the ground bolt and the straps I've changed the setup after getting my red top (battery bolted from corners and not moving at all) and will change it again this spring. Getting a thinner plate welded in rather than "glued" and bolted, as well as searching for a lighter battery that can handle blasting music while washing it and not go dead (A proper daily driver battery).
