DIY Carbon Fiber Colorline and Door Pulls
I thought I would share my recent experience with a product that allows you to “skin” your own parts in real carbon fiber.
(Thanks to SlimJimTell for emailing me the link since he tried it first)
The product is sold by http://www.carbonmods.co.uk/Default.aspxand
Delivered to the USA it cost me about $90 and came in a week. The kit contains all you need and I only had a minimal sheet of carbon left over, so its about perfect for the two door handles and dash pieces.
I ordered the red/black carbon to be different, but they offer blue/black and also standard gray.
I have a 2011 MCS with Piano Black dash colorline pieces that I wanted to do in carbon.
Basically the instructions are very good and very easy to follow. You only do about 20 minutes of work a day, over about 6-7 days.

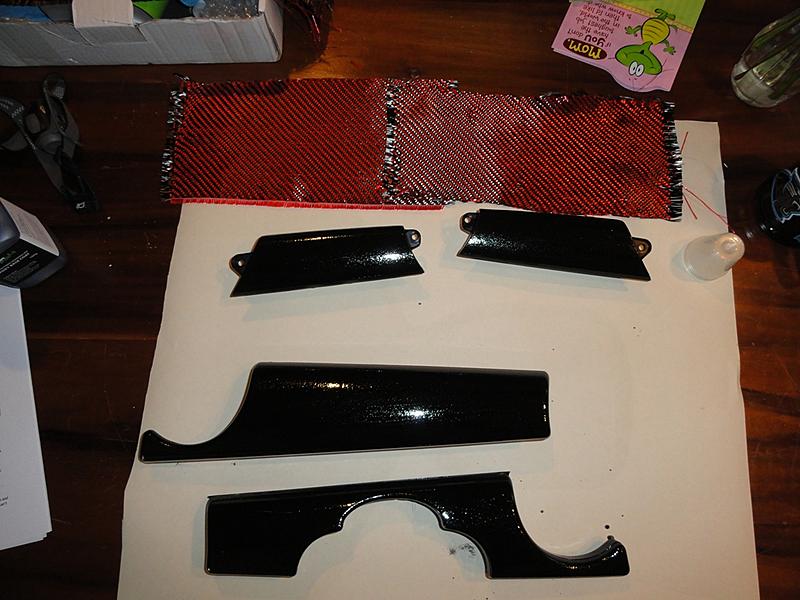

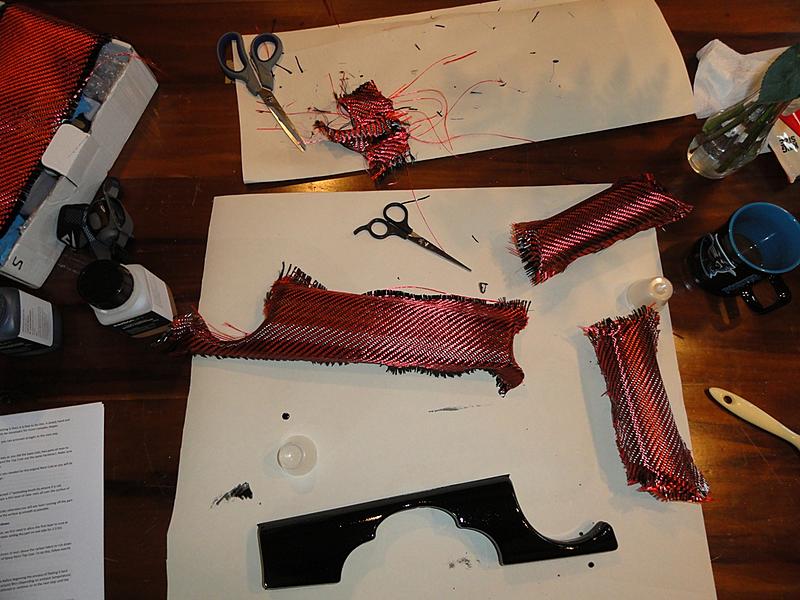

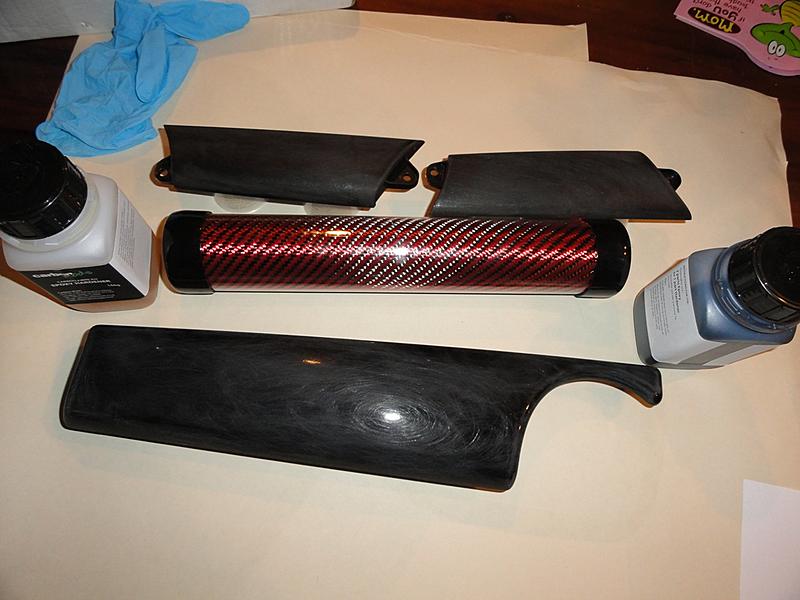

You start out by sanding all the parts lightly so the black epoxy base coat will adhere to it. After about 2 hours the basecoat will be tacky and then you lay the carbon weave over the part. Be careful not to pull or distort the pattern, but if you apply even pressure as you lay it down you should be fine. Do yourself a favor and BUY A NEW PAIR OF SCISSORS!.....That carbon is a pain to cut and a new razor blade just floated across it when I tried to trim it out!
Next you begin the process of applying 6-7 thin coats of the epoxy resin. I was worried about running out of hardener/resin but the kit had a bunch left over. I actually was mixing too much so I cut back after the first 2 coats.
I used a digital scale to get the right 2:1 ratio
I lightly sanded between a few coats and after the final coat I let it all dry for 24 hours. Then using the included sandpapers I wet sanded all the parts starting with 240 grit and finished with 1200 grit.

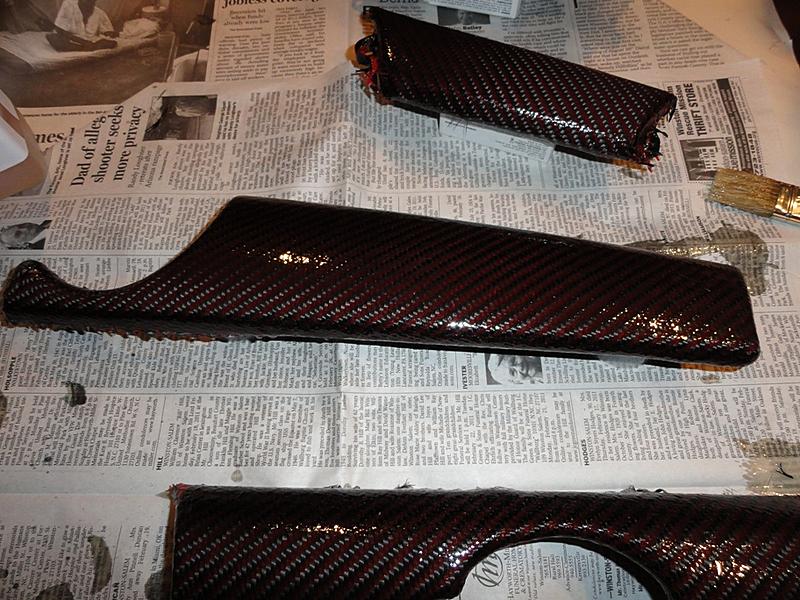

Today I started applying the top coats of clear lacquer. This is optional but I wanted the gloss to be extra deep. The kit includes final polish that buffs it up to a high sheen. After I buff it all up I’ll post final pics after install on Saturday.
If I were going to do it again I would make sure that I left extra material at the edges so that the rounded corners and ends could be secured with tape before the resin is applied. I have experience with fiberglass cloth from model airplane building, but unlike the fiber cloth, the carbon gets stiff when wet and wants to stand out straight instead of following the curves.
I used a dremel cut off wheel to trim the perimeter of all the parts after it all hardened.
The finished ends of the door pulls are not perfect in the pics, but they will be hidden under the armrest and speaker dome.
I’m sure there will be a few flaws in the final product, but hey…..I’m only into the kit for $90 verses almost $700 for the JCW stuff?
And its unique to MY MINI cause I havent seen red carbon anywhere.
More pics to come…..
(Thanks to SlimJimTell for emailing me the link since he tried it first)
The product is sold by http://www.carbonmods.co.uk/Default.aspxand
Delivered to the USA it cost me about $90 and came in a week. The kit contains all you need and I only had a minimal sheet of carbon left over, so its about perfect for the two door handles and dash pieces.
I ordered the red/black carbon to be different, but they offer blue/black and also standard gray.
I have a 2011 MCS with Piano Black dash colorline pieces that I wanted to do in carbon.
Basically the instructions are very good and very easy to follow. You only do about 20 minutes of work a day, over about 6-7 days.
You start out by sanding all the parts lightly so the black epoxy base coat will adhere to it. After about 2 hours the basecoat will be tacky and then you lay the carbon weave over the part. Be careful not to pull or distort the pattern, but if you apply even pressure as you lay it down you should be fine. Do yourself a favor and BUY A NEW PAIR OF SCISSORS!.....That carbon is a pain to cut and a new razor blade just floated across it when I tried to trim it out!
Next you begin the process of applying 6-7 thin coats of the epoxy resin. I was worried about running out of hardener/resin but the kit had a bunch left over. I actually was mixing too much so I cut back after the first 2 coats.
I used a digital scale to get the right 2:1 ratio
I lightly sanded between a few coats and after the final coat I let it all dry for 24 hours. Then using the included sandpapers I wet sanded all the parts starting with 240 grit and finished with 1200 grit.
Today I started applying the top coats of clear lacquer. This is optional but I wanted the gloss to be extra deep. The kit includes final polish that buffs it up to a high sheen. After I buff it all up I’ll post final pics after install on Saturday.
If I were going to do it again I would make sure that I left extra material at the edges so that the rounded corners and ends could be secured with tape before the resin is applied. I have experience with fiberglass cloth from model airplane building, but unlike the fiber cloth, the carbon gets stiff when wet and wants to stand out straight instead of following the curves.
I used a dremel cut off wheel to trim the perimeter of all the parts after it all hardened.
The finished ends of the door pulls are not perfect in the pics, but they will be hidden under the armrest and speaker dome.
I’m sure there will be a few flaws in the final product, but hey…..I’m only into the kit for $90 verses almost $700 for the JCW stuff?
And its unique to MY MINI cause I havent seen red carbon anywhere.
More pics to come…..
Last edited by Whistler NC; 05-12-2011 at 09:40 AM.
#3
Pics 3

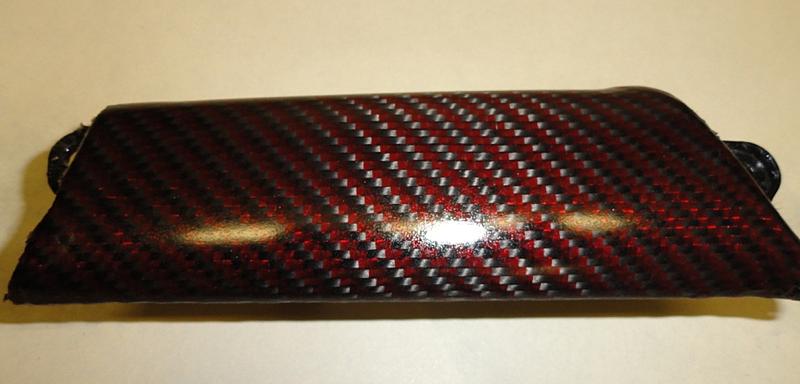

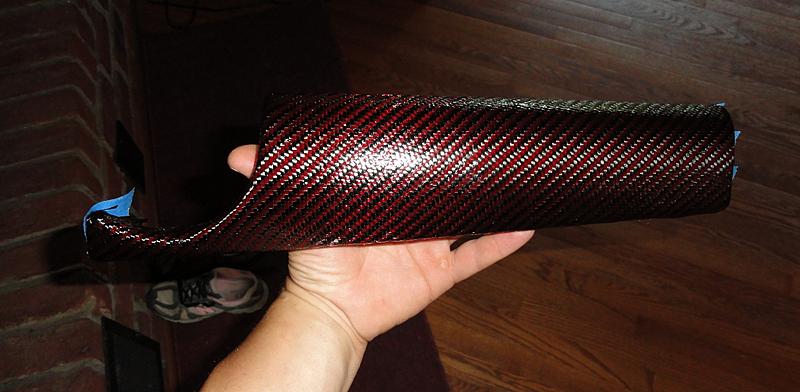

Here are the pics after 3 coats of spray on clear Lacquer.
I took one with and without the flash.
The red color did get a hair darker than I had hoped after seeing the raw material arrive in the box, but when It hits the sun and goes in the car it should be nice.
I already have custom red punched leather in my dash and armrests, so too much red might have been overkill if it were brighter.
It doesnt look all that fancy now, but trust me when the final part is buffed on a 6" felt wheel the gloss gets 3x as deep and rich.
The Middle pic is with flash, the last pic is without flash taken indoors.
I took one with and without the flash.
The red color did get a hair darker than I had hoped after seeing the raw material arrive in the box, but when It hits the sun and goes in the car it should be nice.
I already have custom red punched leather in my dash and armrests, so too much red might have been overkill if it were brighter.
It doesnt look all that fancy now, but trust me when the final part is buffed on a 6" felt wheel the gloss gets 3x as deep and rich.
The Middle pic is with flash, the last pic is without flash taken indoors.
Last edited by Whistler NC; 05-12-2011 at 09:40 AM.
#7
Trending Topics
#11
Finished

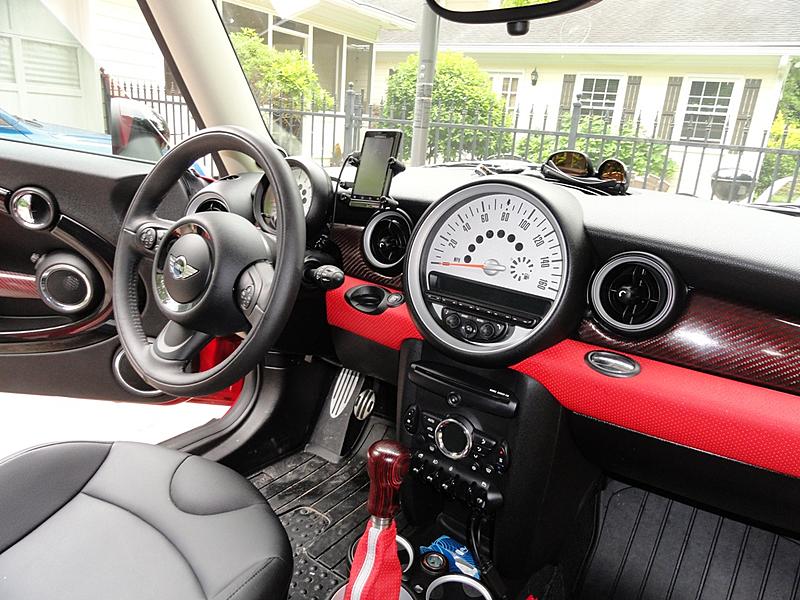

I just got done final polishing and waxing the parts and installed them in the car. I think they look good for my first time working with carbon. If I did a second set I know how to make them almost perfect.
